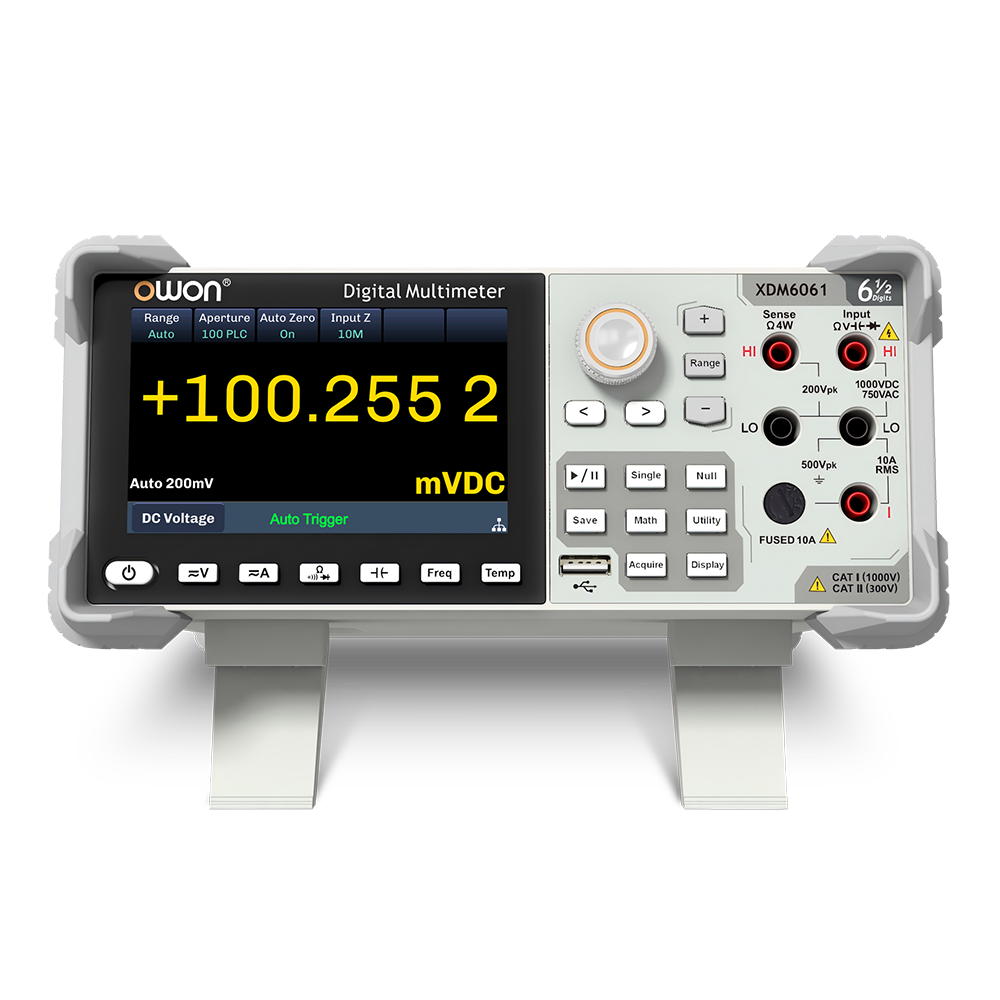

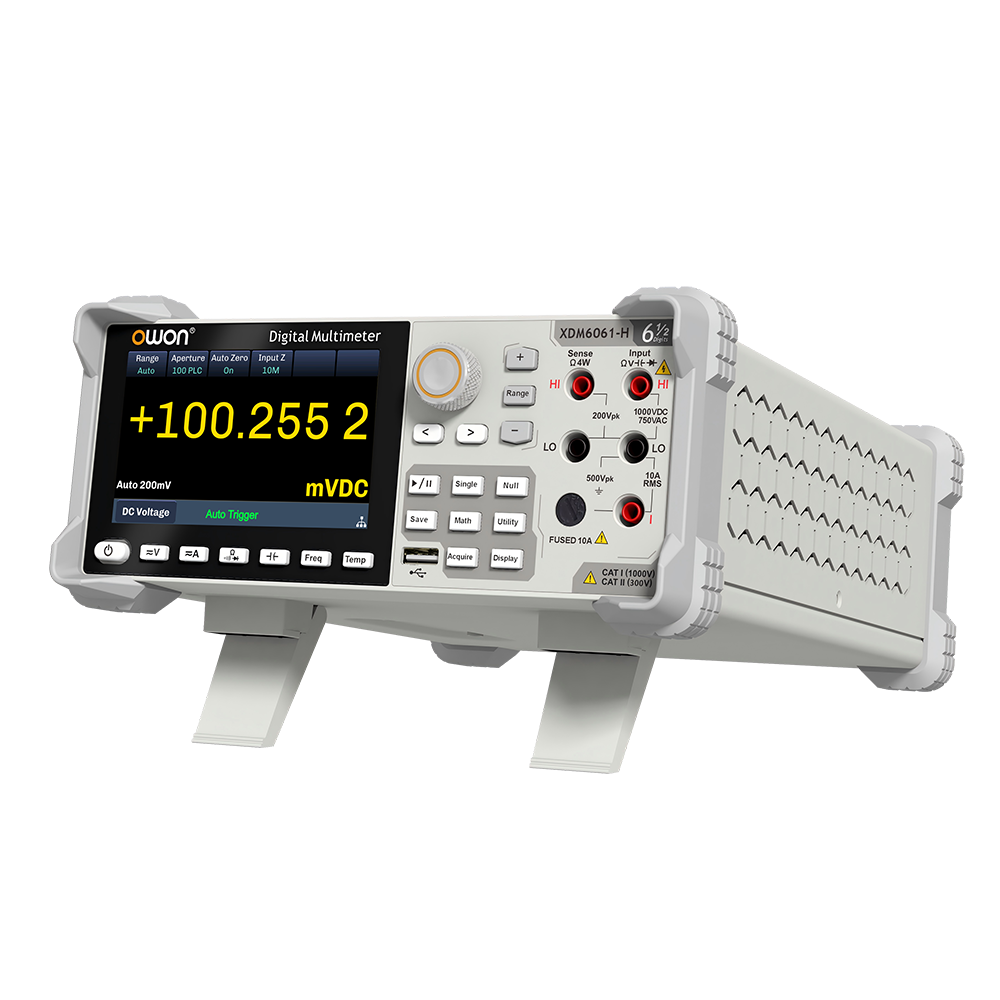

6 1/2 Digits XDM6061 Digital Multimeter
+ Wide measurement range up to 3000V / 200A , meets the special requirements of photovoltaic, energy storage, and new energy vehicle testing
+ High-speed measurement up to 10,000 rdgs/s, greatly improves testing efficiency.

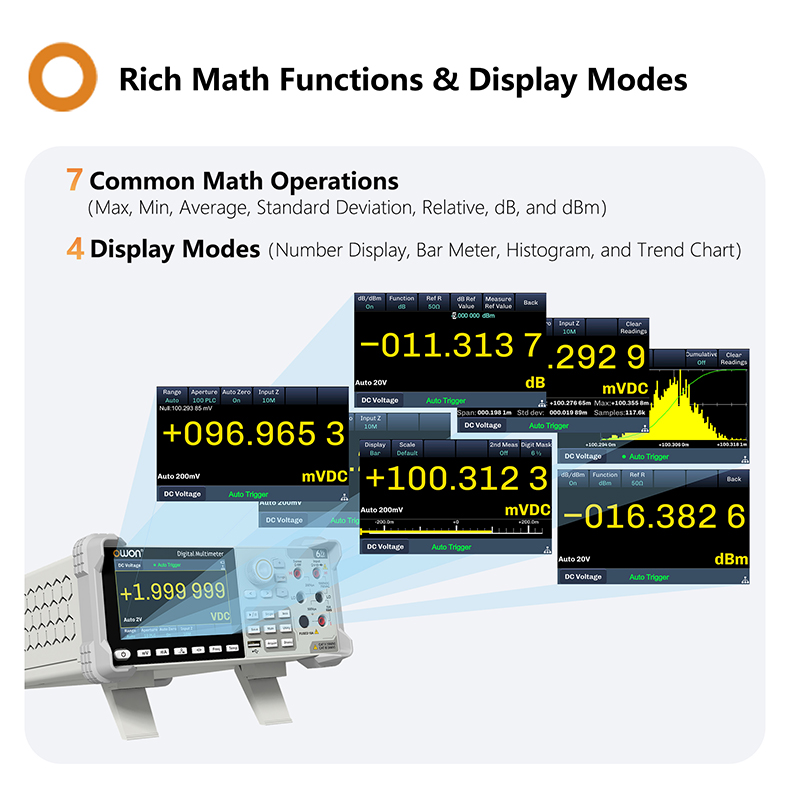

+ Comprehensive math functions, include Max, Min, Average, Standard Deviation,Relative Measurement, Bar Graph, Histogram, Trend Chart, dB/dBm, Limit test, and more; perform data analysis directly on the instrument without extra software

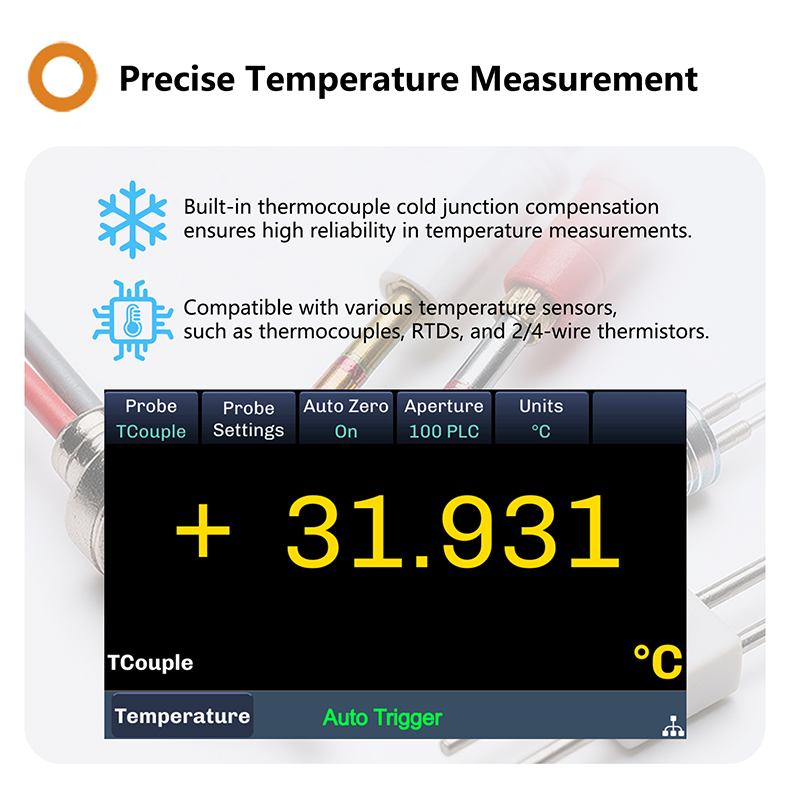

+ Built-in thermocouple cold junction compensation, no need for external compensation hardware, saving accessory costs and improving temperature measurement accuracy

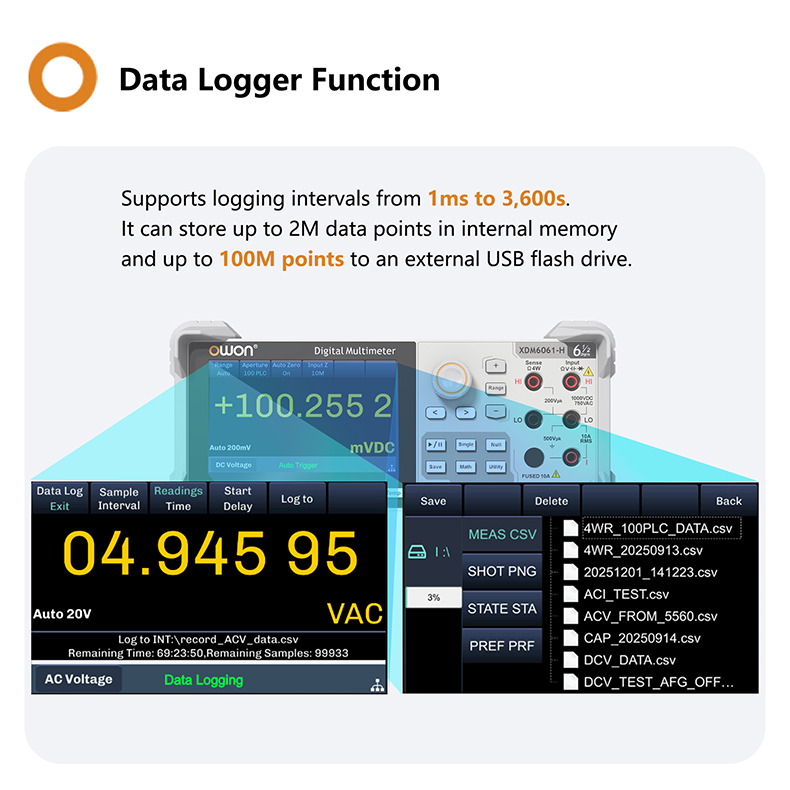

+ Data Logger Function: records all measurement values in CSV format, with a fastest logging interval of 1ms, 2M points capacity, and expandable to 100M points via USB drive
+ 2 Gb NAND Flash Storage, stores large amounts of instrument setup files and data files.

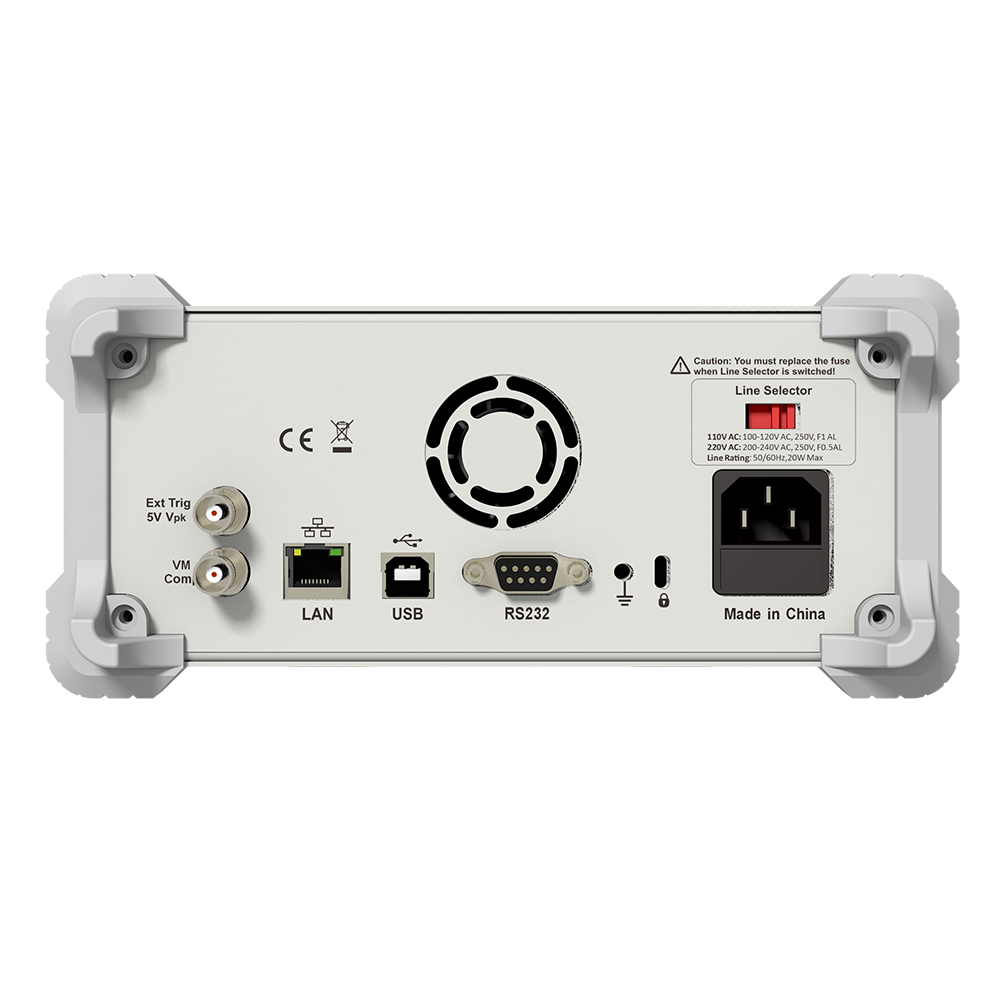

+ Multiple Interfaces: USB Device / Host, LAN, RS-232; supports standard SCPI commands for easy integration into automated test systems

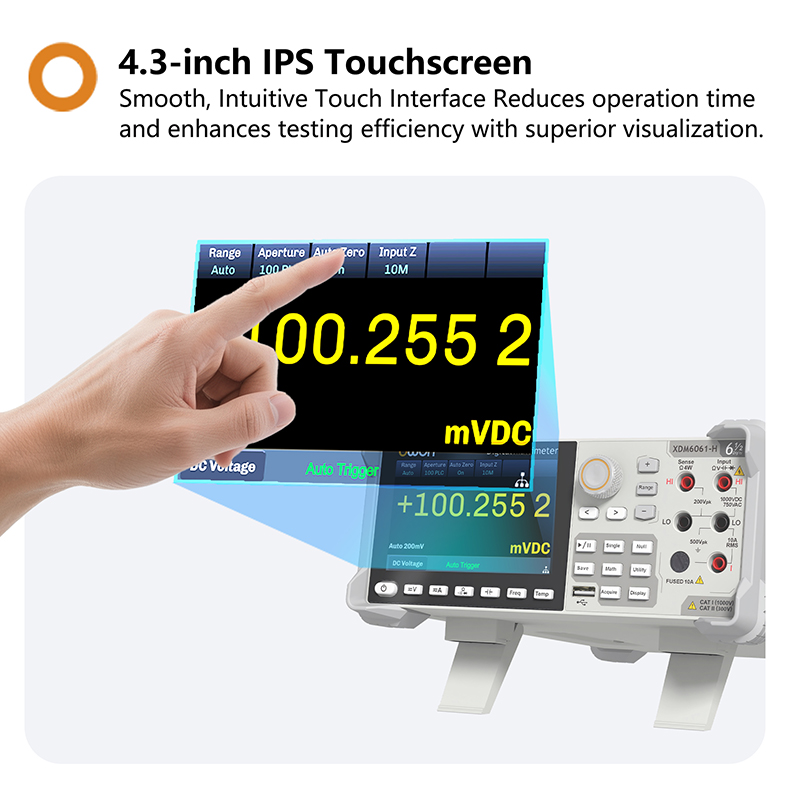

+ 4.3-inch IPS touchscreen, intuitive operation and graphical display allow engineers to get started faster, reduce operation time, and enhance visualization experience.
PDF Export
E-mail Us
Accuracy Specification: ±(%Reading + %FS)
|
Function |
Range |
Best Accuracy |
Temperature Coefficien |
|
DC Voltage |
200.000mV – 1000.000V (XDM6061） 200.000mV – 3000.000V (XDM6061-H） |
0.0035±0.0006 |
0.0005+0.0001 |
|
AC Voltage (True RMS) |
200.0000mV - 750.0000V |
0.06+0.04 |
0.005+ 0.004 |
|
DC Current |
200.0000μA - 10.00000A (XDM6061) 200.0000μA - 200.00000A (XDM6061-H) |
0.050+0.003 |
0.0020+0.0005 |
|
AC Current (True RMS) |
200.0000μA - 10.00000A |
0.10+0.04 |
0.015+ 0.006 |
|
Resistance |
200.0000Ω - 100.0000MΩ |
0.010+0.001 |
0.0006+0.0001 |
|
Diode Test |
0 - 5V |
0.010+0.020 |
0.0010+0.0020 |
|
Continuity Test |
2000.0 Ω |
0.010+0.020 |
0.0010+0.0020 |
|
Frequency / Period |
3Hz - 1MHz |
0.007 |
0.001 |
|
Capacitance |
2.0000nF - 100.00mF |
1 + 0.3 |
0.01 +0.01 |
|
Temperature |
thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type) thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) 2-wire and 4-wire thermistors (5 kΩ 44007 type) |
0.16℃ |
0.01℃ |
|
Mathematical Functions |
Min, Max, Avg, Std Dev, dBm, dB, Limit，Relative，Histogram, Trend Chart, Bar Chart |
||
|
Trigger |
External Trigger、VMC out |
||
|
Data-logger Function |
|||
|
Logging Duration |
1ms-3600s |
||
|
Logging Length |
2M points (Internal memory) |
||
|
General |
|||
|
Dimension (W x H x D) |
346mm x 260 mm x 107 mm |
||
|
Weight |
3.4kg (without package) |
||
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
Multimeter Leads -
Fuse -
Alligator Clip
